Grails on Circle CI Basics

In this guide, we will learn how to setup Circle CI to build and test a Grails application.

Authors: Nirav Assar, Sergio del Amo

Grails Version: 3.3.6

1 Grails Training

Grails Training - Developed and delivered by the folks who created and actively maintain the Grails framework!.

2 Getting Started

Every software project needs Continuous Integration (CI).

Continuous integration is a software development strategy that increases the speed of development while ensuring the quality of the code. Developers continually commit small increments of code (at least daily, or even several times a day), which is then automatically built and tested before it is merged with the shared repository.
— Circle CI Docs

Circle CI is a continuous integration platform seamlessly integrated with GitHub. It supports your development process by automatically building, testing and deploying code changes.

In this guide you are going to create a Grails application on GitHub and use Circle CI to build and test your code. This guide assumes you are familiar with Git and GitHub. It also assumes that you already have a GitHub account. The guide will cover only build and test an Grails application with Circle CI. However, Circle CI has the ability to deploy, send notifications, and highly customize CI jobs.

Circle has one free plan for any project, and has progressively more costly plans for higher needs. Thus, it is really convenient to build and test an open source Grails Plugin which you may wish to contribute to the community.

2.1 What you will need

To complete this guide, you will need the following:

  • Some time on your hands

  • A decent text editor or IDE

  • JDK 1.7 or greater installed with JAVA_HOME configured appropriately

2.2 How to complete the guide

To get started do the following:

or

The Grails guides repositories contain two folders:

  • initial Initial project. Often a simple Grails app with some additional code to give you a head-start.

  • complete A completed example. It is the result of working through the steps presented by the guide and applying those changes to the initial folder.

To complete the guide, go to the initial folder

  • cd into grails-guides/grails-on-circleci-basics/initial

and follow the instructions in the next sections.

You can go right to the completed example if you cd into grails-guides/grails-on-circleci-basics/complete

3 Writing the Application

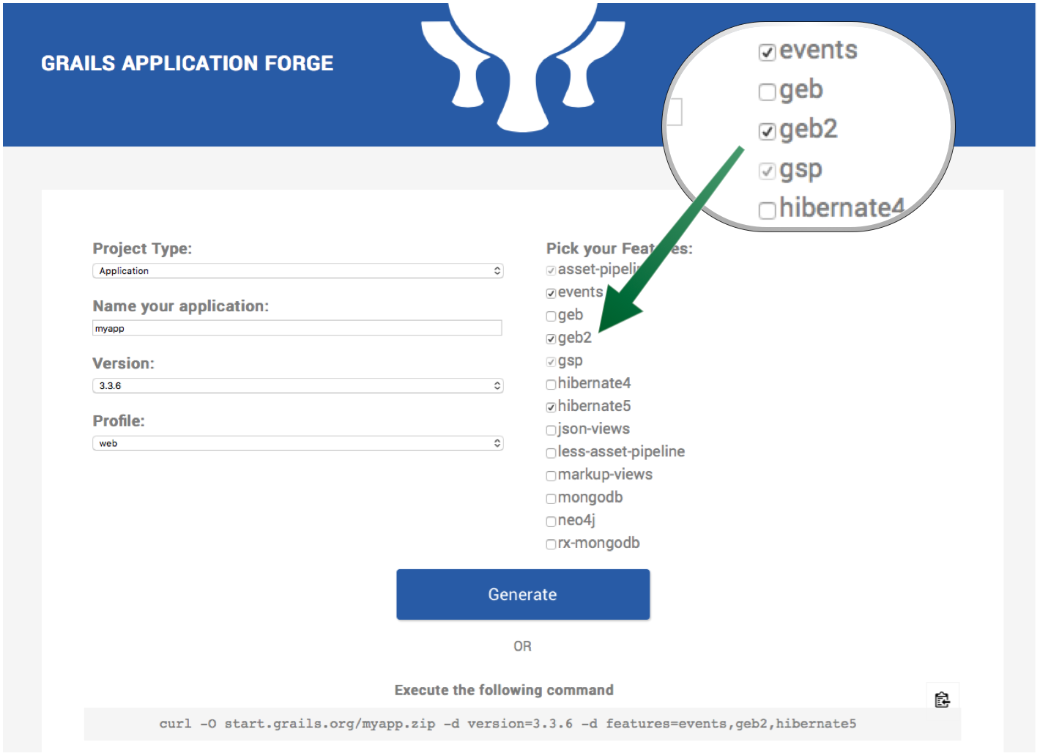

The initial project contains a Grails Application created with the web profile and the geb2 feature with the Grails Application Forge.

appforge

The geb2 features includes a dependency to the latest version of Geb which is not compatible with JDK 1.7. If you need to support 1.7 use the geb feature instead.

Using the geb2 feature modifies your build.gradle as follows:

gradle.properties
grailsVersion=3.3.6
gormVersion=6.1.10.RELEASE
gradleWrapperVersion=3.5
assetPipelineVersion=2.14.8
webdriverBinariesVersion=1.4
seleniumVersion=3.6.0
chromedriverVersion=2.40
geckodriverVersion=0.21.0
build.gradle
buildscript {
...
    dependencies {
    ...
        classpath "gradle.plugin.com.energizedwork.webdriver-binaries:webdriver-binaries-gradle-plugin:$webdriverBinariesVersion" (1)
    }
}
...
...
...
apply plugin:"com.energizedwork.webdriver-binaries" (1)

...
...
...

dependencies {
    ...
    ...
    testCompile "org.grails.plugins:geb" (2)
    testRuntime "org.seleniumhq.selenium:selenium-chrome-driver:$seleniumVersion"  (3)
    testRuntime "org.seleniumhq.selenium:selenium-firefox-driver:$seleniumVersion" (4)
    testCompile "org.seleniumhq.selenium:selenium-remote-driver:$seleniumVersion"  (5)
    testCompile "org.seleniumhq.selenium:selenium-api:$seleniumVersion"            (5)
    testCompile "org.seleniumhq.selenium:selenium-support:$seleniumVersion"        (5)
}

webdriverBinaries {
    chromedriver "${chromedriverVersion}"  (6)
    geckodriver "${geckodriverVersion}" (7)
}
1 Apply the Webdriver binaries Gradle Plugin. A Gradle plugin that downloads WebDriver binaries specific to the operating system the build runs on. The plugin also as configures various parts of the build to use the downloaded binaries.
2 Include a testCompile dependency to the Geb Grails plugin which has a transitive dependency to geb-spock.
3 Adds the necessary selenium dependencies to use Chrome
4 Adds the necessary selenium dependencies to use Firefox
5 Geb is built on top of WebDriver. You need these testCompile dependencies.
6 Configures the ChromeDriver version to be used by the Webdriver binaries Gradle Plugin.
7 Configures the GeckoDriver version (e.g. Firefox) to be used by the Webdriver binaries Gradle Plugin.

3.1 Unit Test

The initial application contains a unit test which verifies the default UrlMapping for /.

src/test/groovy/example/grails/UrlMappingsSpec.groovy
package example.grails

import grails.testing.web.UrlMappingsUnitTest
import spock.lang.Specification

class UrlMappingsSpec extends Specification implements UrlMappingsUnitTest<UrlMappings> {

    void "test forward mappings"() {
        expect:
        verifyForwardUrlMapping("/", view: 'index')
    }
}

3.2 Integration Test

The initial application contains a functional test which uses Geb to verify that the Home Page displays the sentence Welcome to Grails.

src/integration-test/groovy/example/grails/DefaultHomePageSpec.groovy
package example.grails

import geb.spock.GebSpec
import grails.testing.mixin.integration.Integration
import spock.lang.IgnoreIf

@IgnoreIf( { !sys['geb.env'] }) (1)
@Integration
class DefaultHomePageSpec extends GebSpec {

    def 'verifies there is _<h1>_ header with the text _Welcome to Grails_ when we visit the home page.'() {
        when:
        go '/'

        then:

        $('h1').text() == 'Welcome to Grails'

    }
}
1 Ignore test unless system property geb.env is present.

3.3 Verbose Test Output

When running the tests in a continuous integration server is useful to have a more verbose output.

Modify build.gradle:

build.gradle
tasks.withType(Test) {
    testLogging {
        events "passed", "skipped", "failed"
        exceptionFormat 'full'
    }
}

When we execute the tests we will see output such as:

$ ./gradlew test
....
...
example.grails.UrlMappingsSpec > test forward mappings PASSED

3.4 Run Tests

Verify everything executes correctly up to this point.

./gradlew check. To run the tests:

./grailsw
grails> test-app
grails> open test-report

or

./gradlew check
open build/reports/tests/index.html

4 Create GitHub Repo

We will need to place the Grails application on GitHub so that Circle CI can access it.

Proceed to GitHub and follow the directions to create a new repository.

When creating the repo, make it public. Option not to create a LICENSE and .gitignore. We are importing an existing code base so we want to avoid conflicts.

Import the code into the repo on GitHub by executing the following commands:

> git init
> git add .
> git commit -m "first commit"
> git remote add origin <Your repo URL>
> git push -u origin master

5 Integrate Circle CI

Circle CI integrates directly with your GitHub account. Follow the directions on the Circle CI website for creating a repo to integrate Circle CI

In short you will need to:

  1. Use your GitHub account to sign into Circle CI.

  2. Give permission to Circle to access your repositories.

  3. Enable the repository with Circle CI.

  4. Create a .circleci/config.yml

The next image shows how to enable the repository with Circle CI (Click Setup Project).

circle

5.1 Create Circle Config File

The config.yml file tells Circle CI what to do. It must be located in a folder class .circleci/ at the top level of your project. Circle CI uses a docker image as the container and has the ability to cache dependencies.

.circleci/config.yml
version: 2 (1)
jobs:
  build:
    working_directory: ~/repo
    docker:
      - image: circleci/openjdk:8-jdk-browsers (2)
    environment:
      JVM_OPTS: -Xmx3200m  (3)
      TERM: dumb
    steps: (4)
      - checkout  (5)
      - restore_cache: (6)
                key: grailsapp-{{ checksum "build.gradle" }}-{{ checksum "gradle.properties" }}
      - run: chmod +x gradlew
      - run: ./gradlew --console=plain testClasses  (7)
      - run: ./gradlew --console=plain integrationTestClasses  (8)
      - save_cache: (9)
                paths:
                  - ~/.gradle
                key: grailsapp-{{ checksum "build.gradle" }}-{{ checksum "gradle.properties" }}
      - run: ./gradlew --console=plain -Dgeb.env=chromeHeadless check  (10)
      - store_artifacts: (11)
          path: build/reports
          destination: reports
      - store_test_results: (12)
          path: build/test-results
1 Check CircleCI 2.0 Java configuration for more details
2 Set this Docker Image as the primary container; this is where all steps will run
3 Customize the JVM maximum heap limit
4 A collection of executable commands.
5 Checkout the source code to working directory.
6 Restore the saved cache after the first run or if build.gradle has changed.
7 Assembles test classes.
8 Assembles integration test classes.
9 Saves the project dependencies
10 Runs both integration, functional and unit tests. The feature method DefaultHomePageSpec is ignored if we do not specify the system property geb.env.
11 Uploads the HTML test reports from the build/reports as an artifact
12 Uploads the test metadata from the build/tests-results directory so that it can show up in the CircleCI dashboard.

Commit the change to Git push them to the remote repository. Upon the push, go to https://circleci.com/ and view the build running. Once the build is complete, restart the build to demonstrate that Circle CI will use the cache for dependencies.

6 Where to Go From Here?

Read Circle CI 2.0 documentation to see what it is possible.

For example, Circle CI workflows ease the creation of pipelines to test, and deploy your Grails applications.
